启臣微CR启达CRM2463 PWM Constant-Current Stepping Motor Driver
启臣微CR启达CRM2463两相步进电机设计的电机驱动器芯片
描述
CRM2463是一款专为两相步进电机设计的电机驱动器，它实现PWM调节输出电流。 驱动级由双MOSFET H桥组成。 采用先进的BCD工艺制造，以提高性能并降低功率损耗。 该驱动器支持高达40V的电源电压和最高1.8A的驱动电流。
应用
家电
游乐机
办公自动化机器
特征
低R DS（on）BCD过程
PWM恒流驱动
提供相位输入以允许完整步长和一半
步激发
高电压和电流：40V / 1.8A
热关断（TSD），过流关断
（ISD），上电复位（POR）和欠压
锁定（UVLO）有助于确保运行状态。

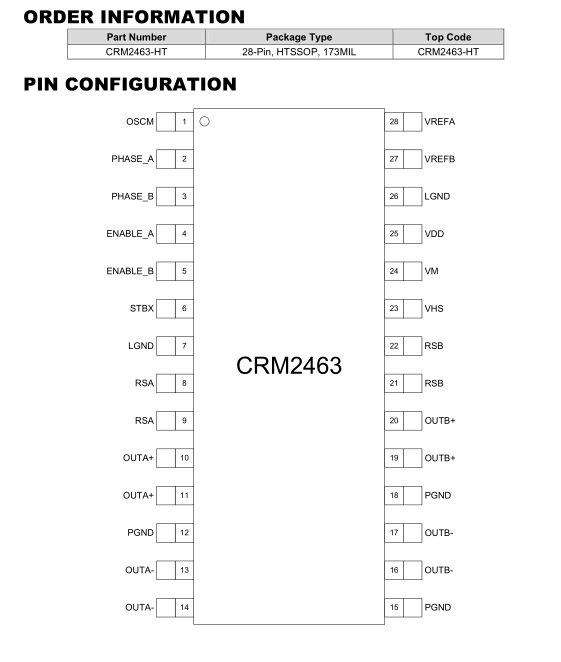

HTSSOP 28引脚封装，带散热垫
DESCRIPTION
The CRM2463 is a motor driver designed for 2 phase
stepping motor, it implement PWM to regulate output

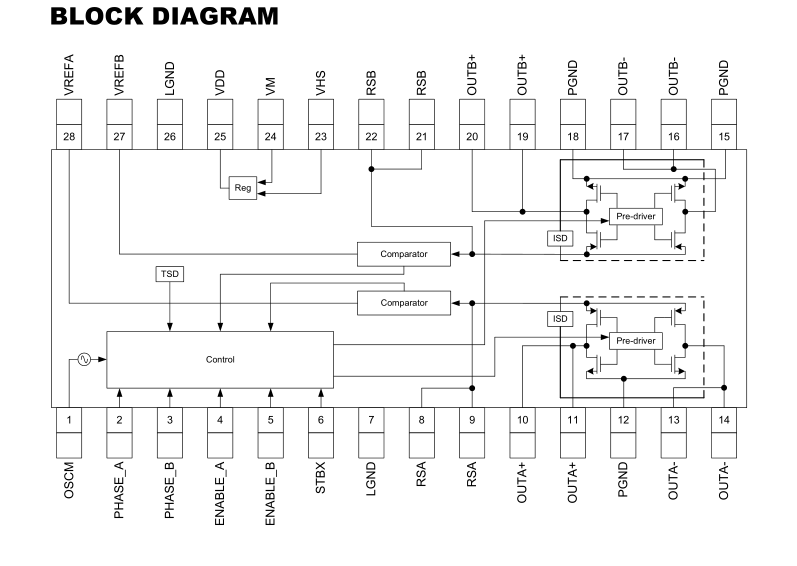

current. The driver stage is consists by dual MOSFET H-
bridge. Fabricated by advanced BCD process to improve
performance and reduce power losses. The driver support
up to 40V supply voltage and maximum driving current up
to 1.8A.
The on-chip voltage regulator allows only powered from a
single power supply, VM, it highly reduce external
components and saving the PCB size.
APPLICATIONS
Home appliance
Amusement machine
Office automation machine
未完。。。
由于资料过多，未上传完毕，如需更详细资料，请找客服索要！！！
