启臣微启达双极步进电机驱动器芯片CRM2139替换DRV8833 MP6507
启臣微CR启达CRM2139 Dual H-Bridge Motor Driver
描述
CRM2139是双桥电机驱动器，具有 两个H桥驱动器，可以驱动两个DC刷 电动机，双极步进电动机，螺线管或其他 感应负载。 它的工作电压范围为2.7V至15V，可以提供负载 每通道电流高达700mA。 输出驱动程序 每个H桥的块由N信道功率组成 MOSFETS配置为H桥以驱动电机 绕组。 每个H桥包括用于调节或的电路 限制绕组电流。 内部安全功能包括下沉和 采用外部实施的电流限制 传感器，欠压锁定，过流保护 （OCP）和热关机。 过热 输出标志可用于指示热关断。 CRM2139采用16引脚，5.0mm×6.4mm封装 TSSOP-EP和TSSOP，3mm×3mm和4mmx4mm QFN封装背面带有外露散热垫。
应 用
• 电池供电式玩具
• 服务点 (POS) 打印机
• 视频安保摄像机
• 办公自动化设备
• 游戏机
• 机器人
DESCRIPTION
The CRM2139 is a dual bridge motor driver which has
two H-bridge drivers, and can drive two DC brush
motors, a bipolar stepper motor, solenoids, or other
inductive loads.
It operates from 2.7V to 15V, and can deliver load
current up to 700mA per channel. The output driver
block of each H-bridge consists of N-channel power
MOSFETS configured as an H-bridge to drive the motor
windings. Each H-bridge includes circuitry to regulate or
limit the winding current.
The internal safety features include sinking and
sourcing current limits implemented with external
sensors, under-voltage lockout, over current protection
(OCP) and thermal shutdown. An over-temperature
output flag is available to indicate thermal shutdown.

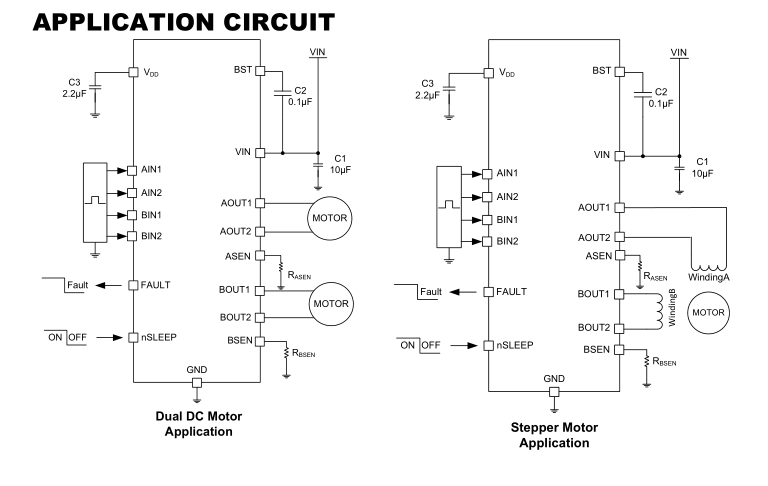

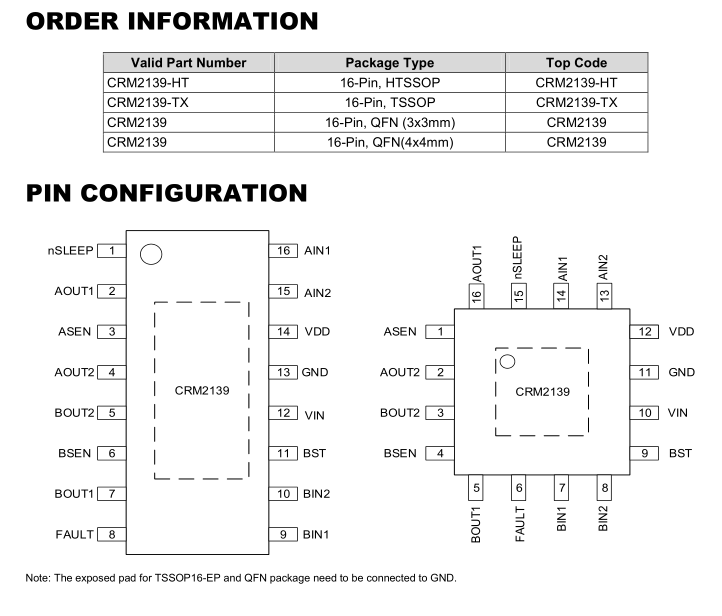

The CRM2139 is packaged in 16-pin, 5.0mm×6.4mm
TSSOP-EP and TSSOP, 3mm×3mm and 4mmx4mm
QFN package with an exposed thermal pad on the back.
FEATURES
Wide Power Supply Voltage Range: 2.7V to 15V
Two Internal Full-Bridge Drivers
Internal Charge Pump for the High-Side Driver
Low Quiescent Current: 1.1mA
Low Sleep Current: 1μA
Thermal Shutdown and Under-Voltage Lockout
Protection
Over Current Protection (OCP)
Over-Temperature Output Flag
Thermally-Enhanced Surface-Mount Package
Low MOSFET On Resistance (HS: 600mΩ; LS:
570 mΩ)
APPLICATIONS
Digital Still Cameras
POS Printers
Video Security Camera
Robotics
Battery Powered Toys
